This article will walk you through how to set up SSO using Okta for SmartDraw.

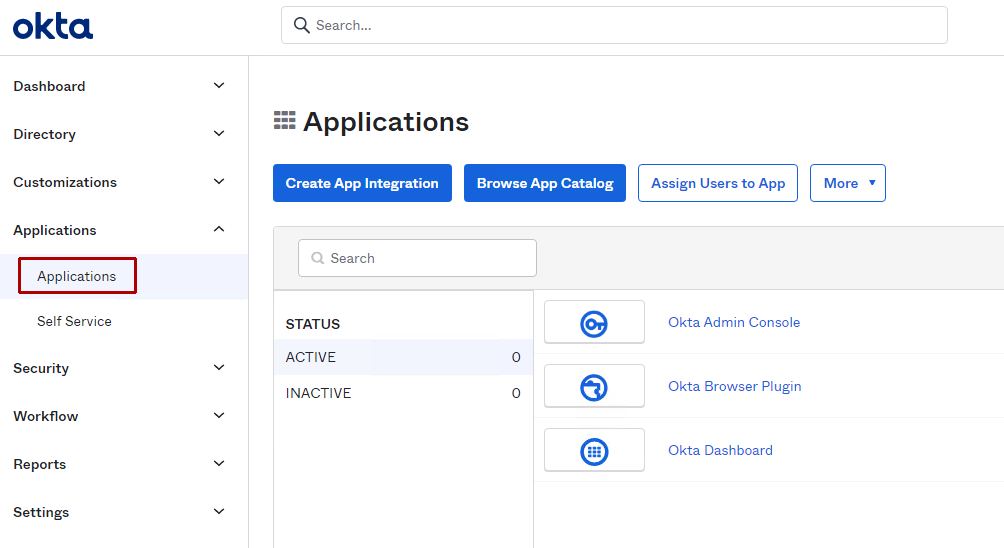

Once you logged into the Admin dashboard in Okta, click on Applications.

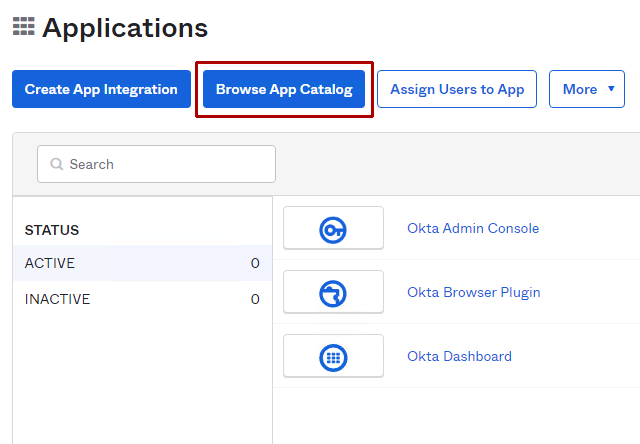

Next, click Browse App Catalog.

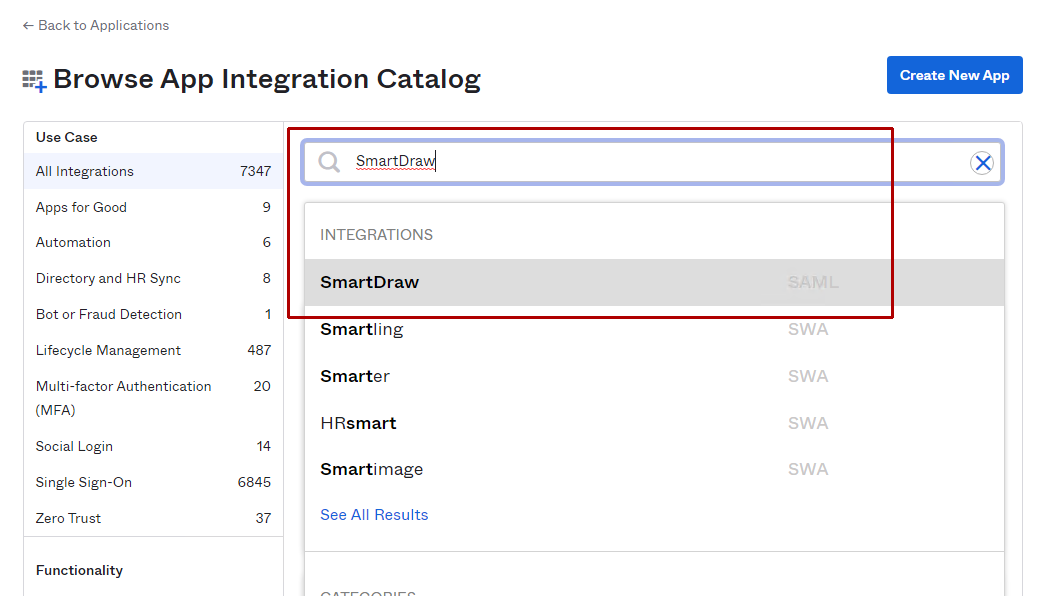

Search for SmartDraw.

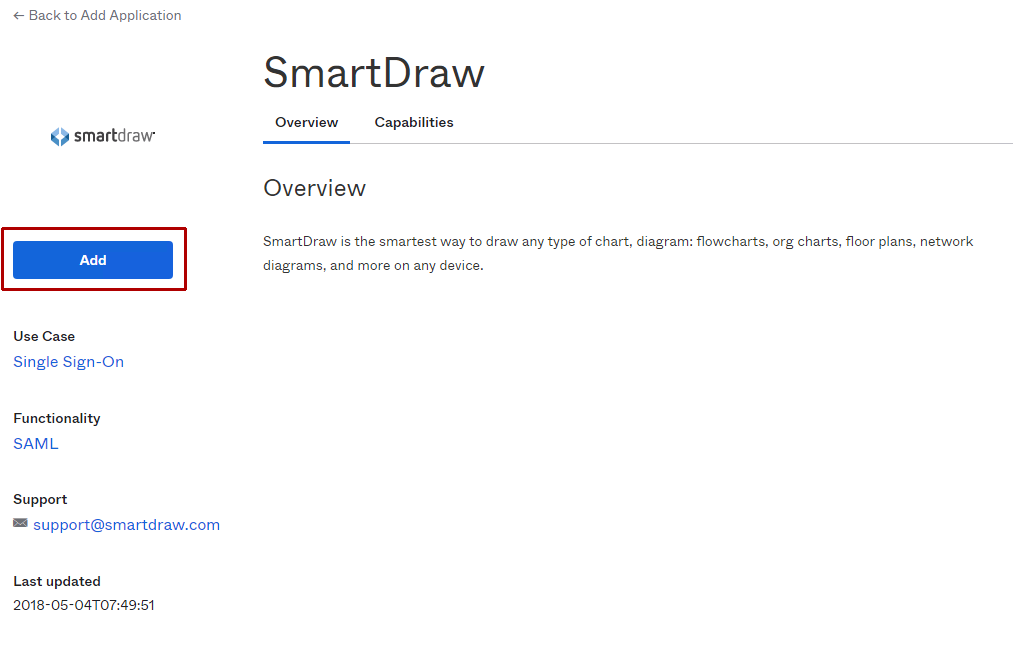

Once you found SmartDraw, click Add.

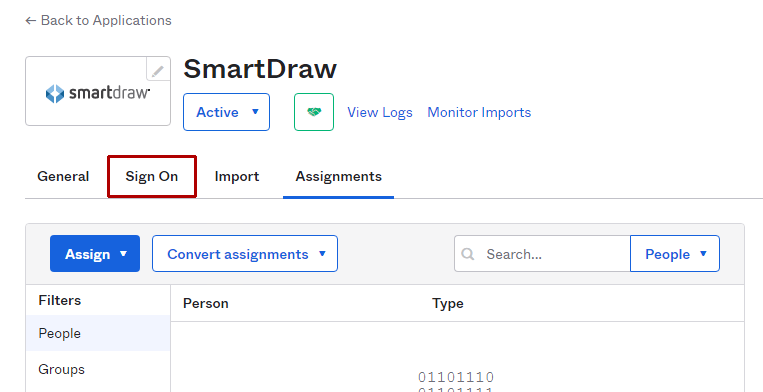

Once SmartDraw is added, click on the Sign On tab.

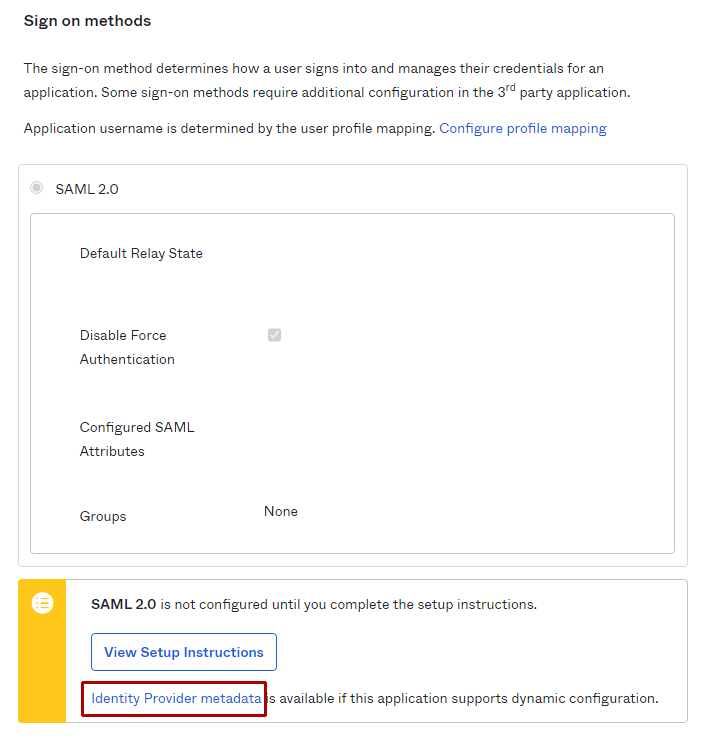

Scroll down to the section for SAML 2.0 and open the link titled Identity Provider metadata.
You'll get an XML file that looks something like this:
Save this file to your computer using Save As. You can name the file anything you want. You'll be asked to upload it to your SmartDraw account in the next sequence of steps.

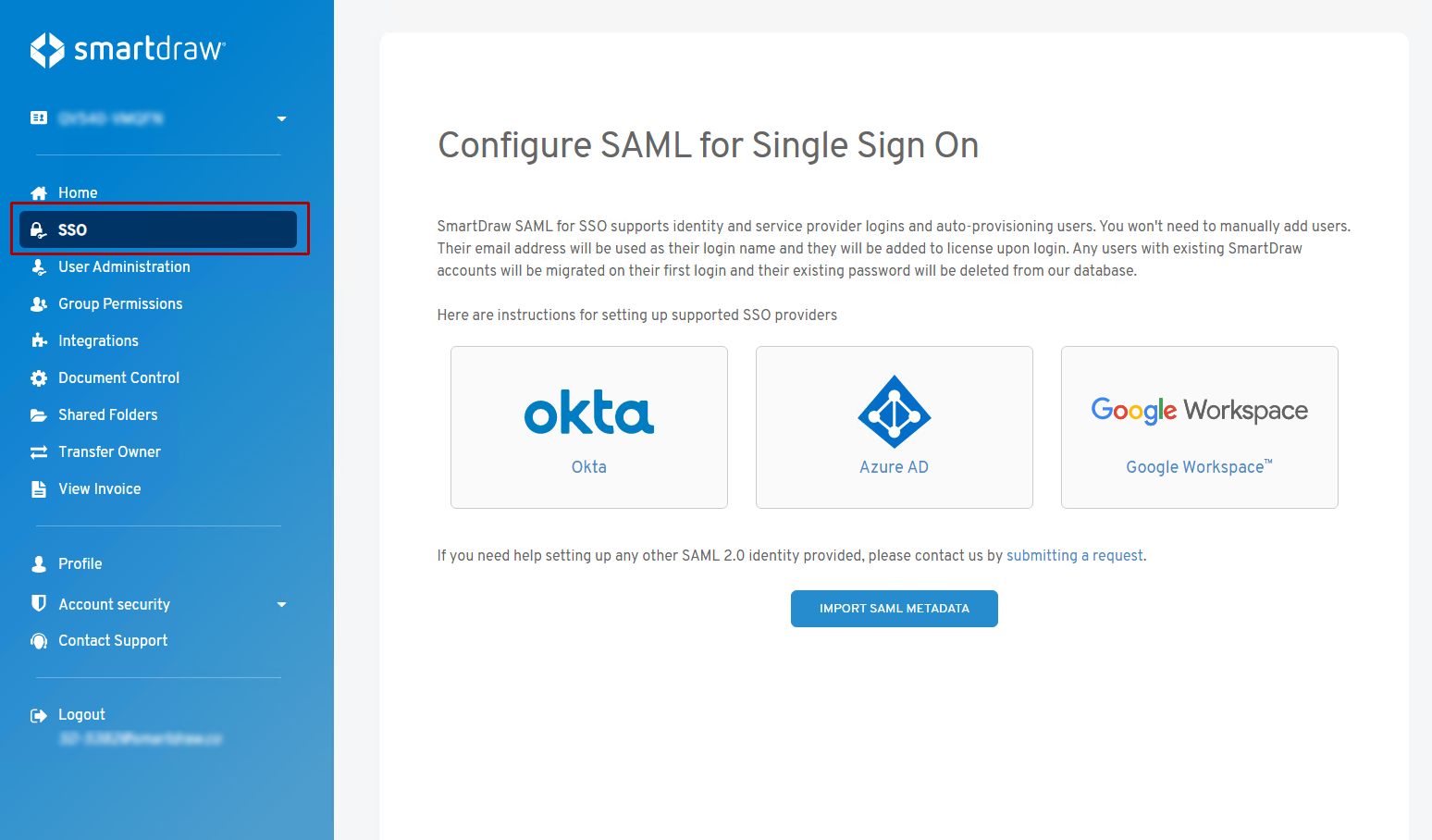

Login to your SmartDraw account and click on the SSO tab in the left navigation.

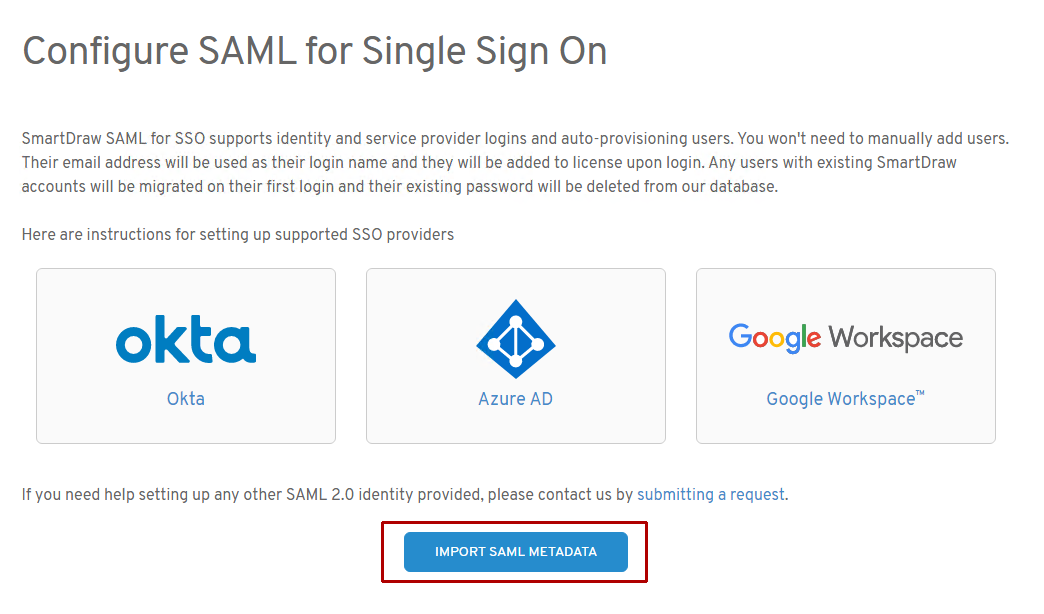

Click on the Import SAML Metadata button.

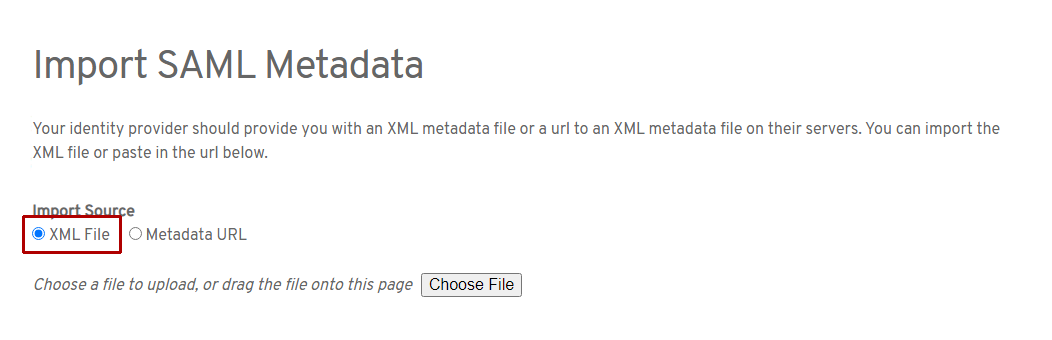

On the next screen, select XML file and browse to the XML file you saved from Okta on your computer.

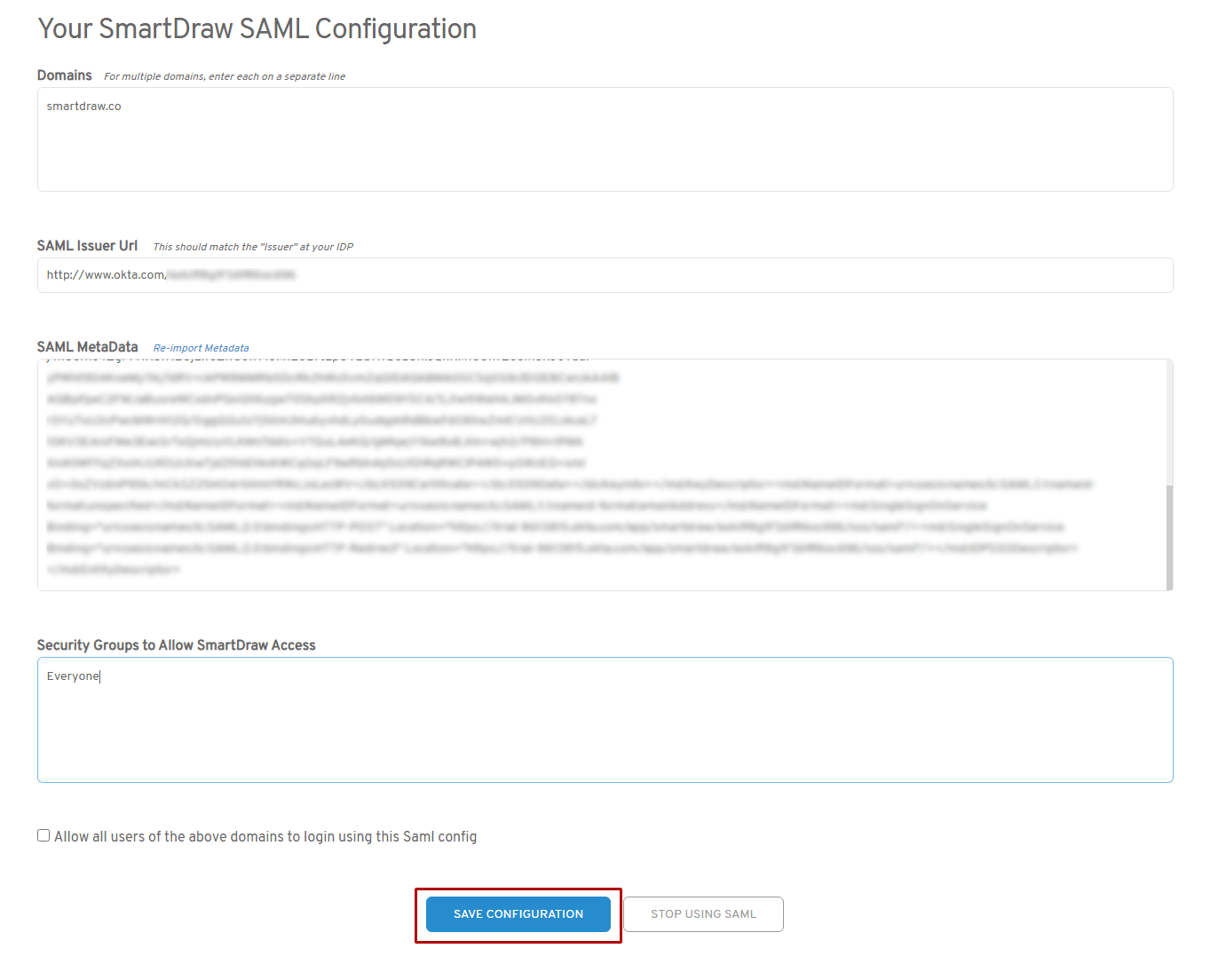

SmartDraw will automatically process the imported file. You can double-check the SAML issues and URL and click Save Configuration to enable OKTA SSO.

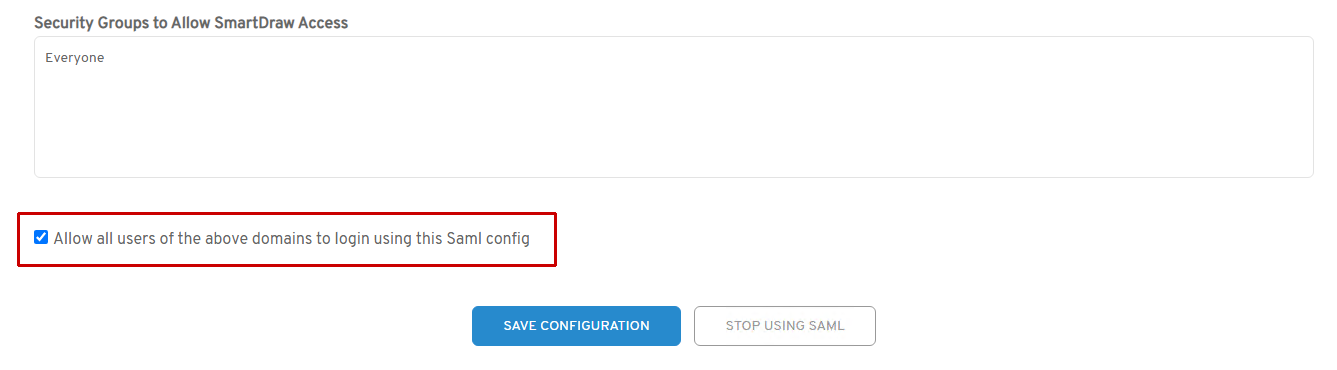

When you're ready to fully enable SSO for every user, make sure you check All all users of the above domains to login using this Saml config and save your settings.
This toggle lets you check your SSO set up before users see it. You can turn it on an off as you need to test things, but it needs to be checked for your users to be able to use SSO with SmartDraw.
