Select Crime Scene Diagram from the Police & Fire category under New Document on the dashboard.
Set the Scene

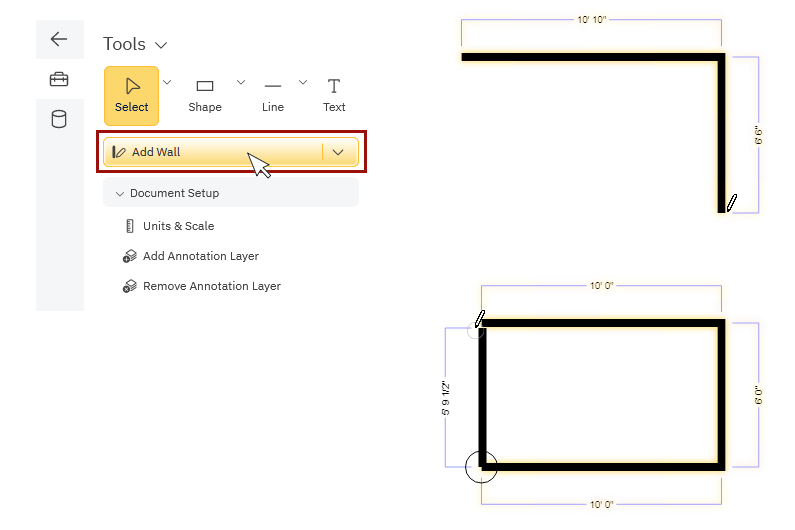

You can create a custom scene using the wall. Click the Add Wall tool in the upper left part of the SmartPanel to the left of your drawing area. Click once in your work area to begin drawing a wall segment, drag your mouse, and then click again to complete your wall segment. You can continue adding more walls to create a closed outline. A circle will appear at the end of a wall to help you connect it to close the outline. Click Esc to exit out of wall drawing mode.
Or you can drag and drop any of the pre-built standard room outlines.
Easily edit the scene using SmartDraw's powerful floor plan features. Add walls, windows, doors, furniture, and more. Learn more about drawing floor plans.
Add Crime Scene Specific Symbols
Add a symbol to your crime scene by dragging and dropping it from the library in the SmartPanel.
To locate additional symbols, simply type a keyword into the Search for symbols field in the Symbols area of the SmartPanel to the left of your workspace. To start the search click the magnifying glass icon.
Symbols matching the query will be grouped by the libraries they appear in.
Hover over any symbol to see its name.
You can drag and drop symbols you find directly from the search results.
Pinning Results

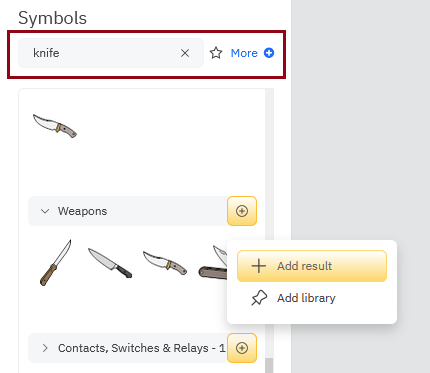

You can save the results for later use. To pin just the symbols that matched your search from a particular library, click on the plus icon next to the library's name and select Add result.
You can also pin the entire library by clicking Add library.
Modify Symbols

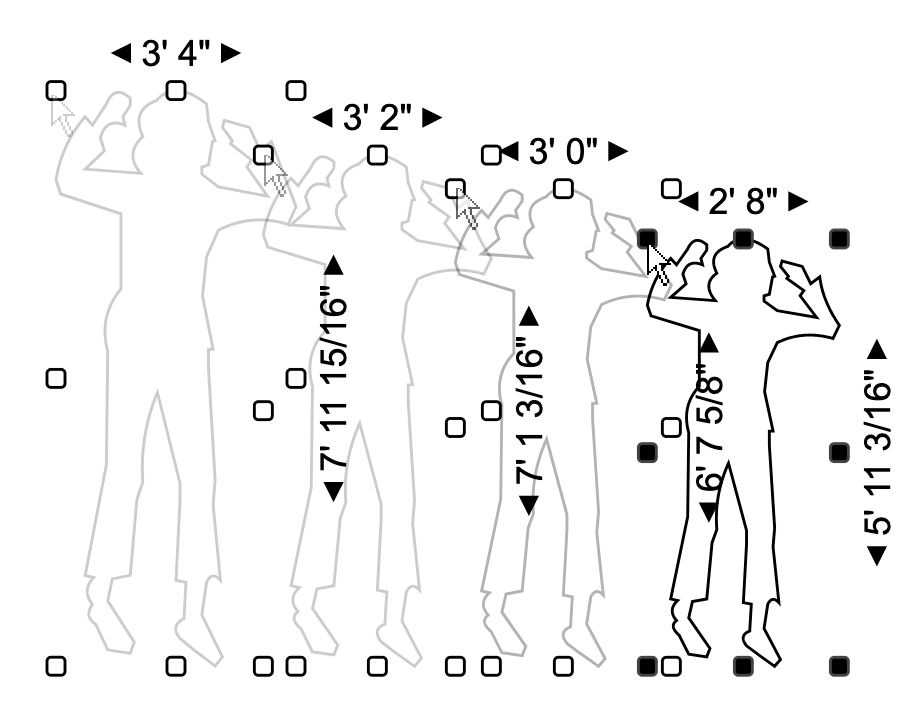

You can resize any symbol using the black square grow handles around them. Just click and drag them.

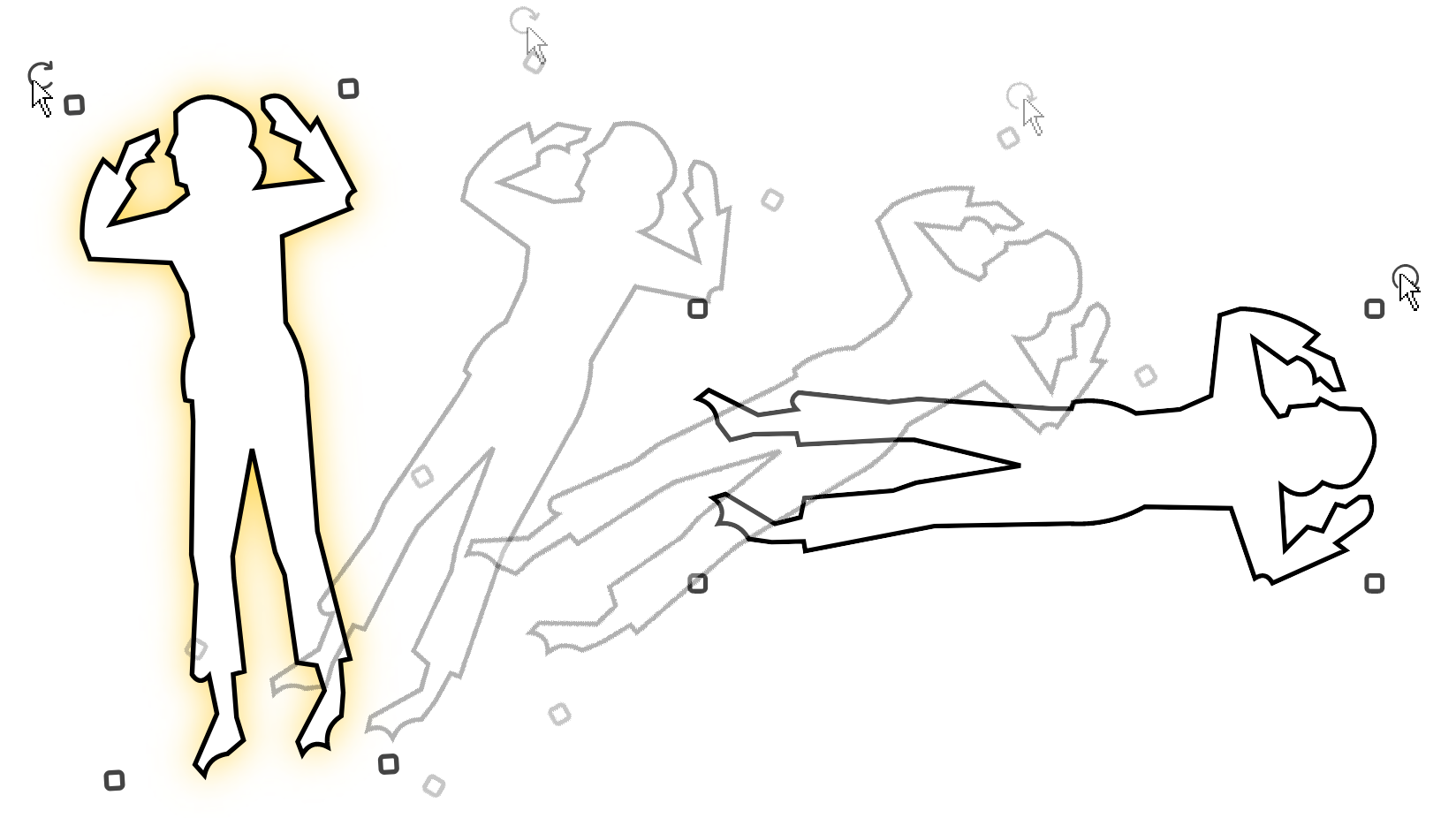

To rotate a symbol, grab the circular rotating handle and rotate your shape.

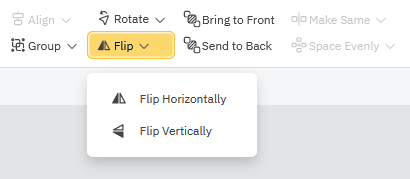

You can also use the options available in the Home tab.
Learn more about working with symbols.
